Trajectory optimization for missile flying NOE

When comparing trajectory optimization for Nap-of-the-Earth (NOE) flight with vsTASKER, you are comparing a dynamic flight strategy to a software simulation tool.NOE is a low-level flying technique used by missiles and aircraft to avoid radar detection by hugging the terrain. vsTASKER is a software used to test, simulate, and plan these exact scenarios to figure out the best flight paths.The differences between the two are outlined below:Nap-of-the-Earth (NOE) FlightNOE is a flight technique, not a program. Missiles rely on NOE to survive in hostile territory.Terrain Masking: Missiles fly as close to the ground as possible to hide behind mountains, hills, and trees to stay under enemy radar.High-Speed Constraints: NOE flying requires extreme agility and fast response times, as the missile must dodge terrain while staying locked onto the target.Endgame Maneuvers: The missile usually stays low until the last second, then performs a "pop-up" maneuver (or "bunt") to climb and dive directly into the target.vsTASKER SimulationvsTASKER is a high-performance 2D/3D simulation and modeling tool created by VirtualSim. It is frequently used by engineers and defense analysts to find the best possible flight paths.Trajectory Optimization: You can use vsTASKER's runtime engine to test thousands of different flight variables, such as speed, altitude, and radar evasion strategies.Radar Placement: vsTASKER can automatically place enemy radars on a terrain map using specific rules (e.g., hiding them in valleys or setting them on high peaks) to create realistic defense scenarios.Monte Carlo Simulations: The software runs millions of batch tests and stochastic optimizations to figure out which NOE paths give the missile the highest chance of avoiding radar and hitting the target.How They Work TogetherIn short, NOE is the action (the missile flying low to the ground) and vsTASKER is the brain (the software used to simulate and mathematically optimize the missile's flight path before it is ever built or launched). You use vsTASKER to determine the perfect set of flight rules for NOE.If you want to dive deeper, tell me:Are you working on conceptual mission planning or testing missile evasion algorithms?Do you need to know more about the radar and terrain constraints inside vsTASKER?

Trajectory optimization for a missile flying Nap-of-the-Earth (NOE) is a highly specialized tactical simulation problem focused on finding the safest, lowest-altitude path through complex 3D terrain to minimize radar cross-section and detection risk.vsTASKER is a high-performance C++ simulation engine built by VirtualSim specifically designed to handle these types of multi-variable, stochastic optimization problems through automated, high-frequency batch runs.How vsTASKER Solves the NOE Trajectory ProblemWhen optimizing an NOE flight path, a missile must dynamically balance conflicting requirements: staying as low as possible to the ground (terrain-following) while respecting its structural 3DOF/6DOF aerodynamic limits and avoiding localized radar coverage.Here is how the problem is mapped into a vsTASKER simulation environment:                  ┌──────────────────────────────┐
                  │   3D Terrain (DEM / Poly)    │
                  └──────────────┬───────────────┘
                                 ▼
┌──────────────────┐      ┌──────────────┐      ┌────────────────────┐
│ Missile Dynamics │ ──► │   vsTASKER   │ ◄── │ Radar Placement & │
│ (Kinodynamics) │      │ Batch Engine │      │ Probability Curves │
└──────────────────┘      └──────┬───────┘      └────────────────────┘
                                 ▼
                  ┌──────────────────────────────┐
                  │    Heuristic Optimization    │
                  │   (Monte Carlo / Stochastic) │
                  └──────────────┬───────────────┘
                                 ▼
                  ┌──────────────────────────────┐
                  │ Top 10 Safest Trajectories │
                  └──────────────────────────────

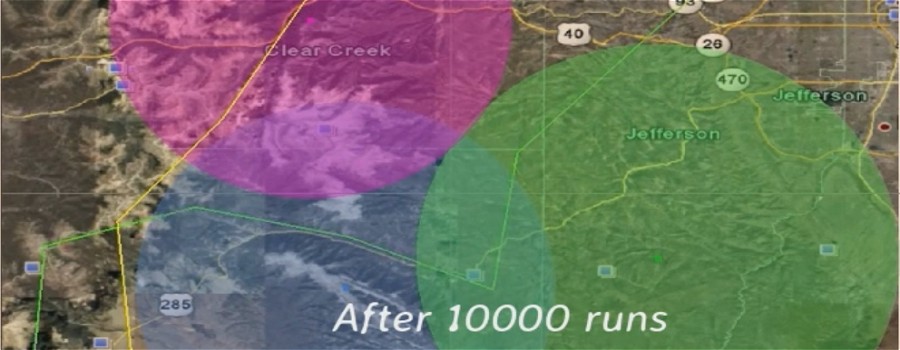

vsTASKER Capabilities & RolevsTASKER provides the simulation environment rather than the raw, real-time online onboard flight algorithms (like Sequential Convex Programming or Pseudospectral Methods). It aids the process by:Stochastic and Heuristic Search: It runs batch simulations to vary initial parameters (launch point, terrain data, waypoints) and tests thousands of configurations.Radar Coverage Evaluation: vsTASKER can map threat areas and calculate probabilities of detection along thousands of varying paths.Monte Carlo Analysis: Tests the missile's robustness against wind, terrain uncertainties, and varying evasive maneuvers.3. Comparing Real-Time vsTASKER to Standalone SolversWhile vsTASKER can iterate and find optimal flight plans offline to generate look-up tables, real-time NOE requires high-fidelity, online 6-DoF onboard trajectory optimization solvers.FeatureOnboard NOE SolversvsTASKER (Simulation & Optimization)Primary UseReal-time flight guidance and controlMission planning, evaluation, and scenario testingResponse TimeMilliseconds (requires fast, closed-loop algorithms)Minutes to hours (for batch/Monte Carlo runs)Core AlgorithmsSuccessive Convex Programming, Gauss Pseudospectral, or BQPHeuristic, Monte Carlo, and user-defined state variablesIntegrationDirect interface with the missile's IMU and control surfacesUsed offline to generate waypoints, export data, or train agents

Downlaod - Trajectory optimization for missile flying NOE

Request for Trial licence

Download User Guide & reference manual

Missile NOE Use Case GoalsTerrain Following / Terrain Avoidance: The missile must fly just above the ground surface to avoid line-of-sight (LOS) detection by ground-based radars and air defenses.Threat Avoidance: Trajectory planning algorithms calculate paths that route around known threat envelopes and high-risk zones.Dynamic Contouring: Demands continuous calculation of limits like aerodynamic G-force, altitude floors, and angle-of-attack
